Hartte XSBL-series

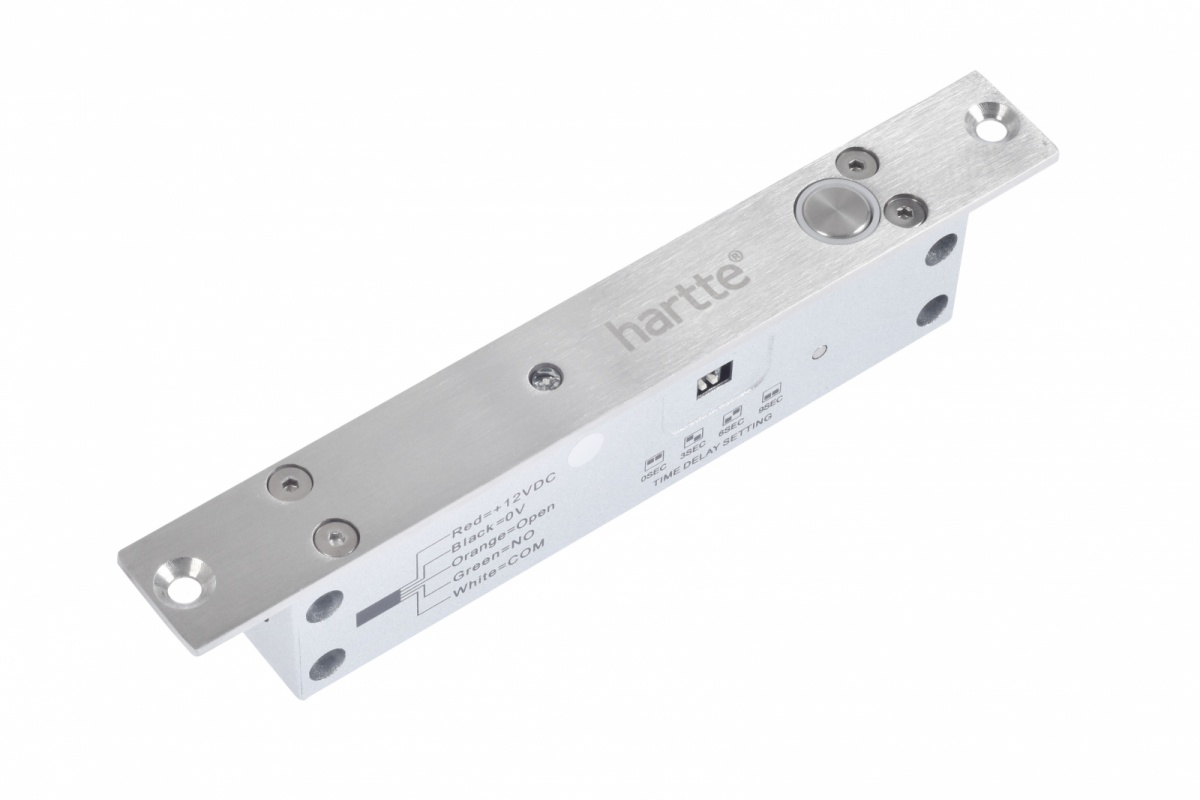

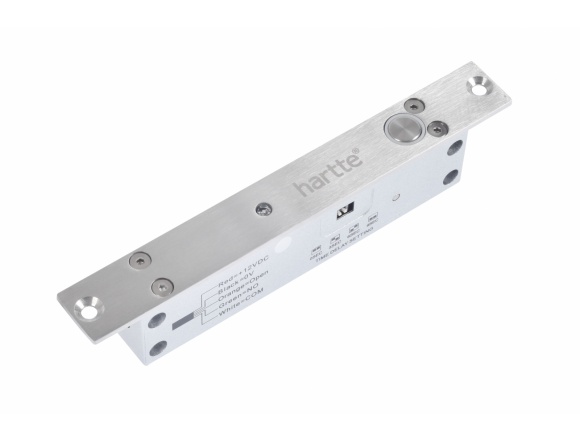

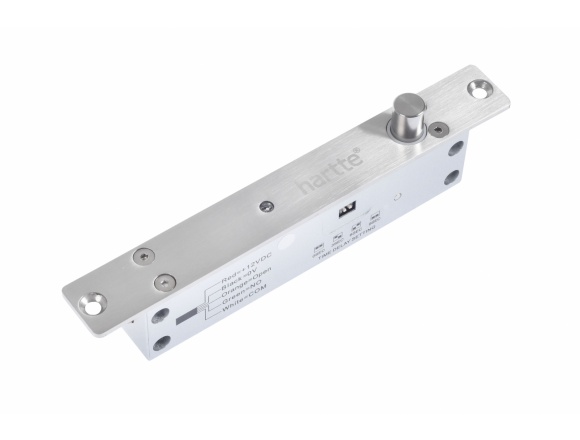

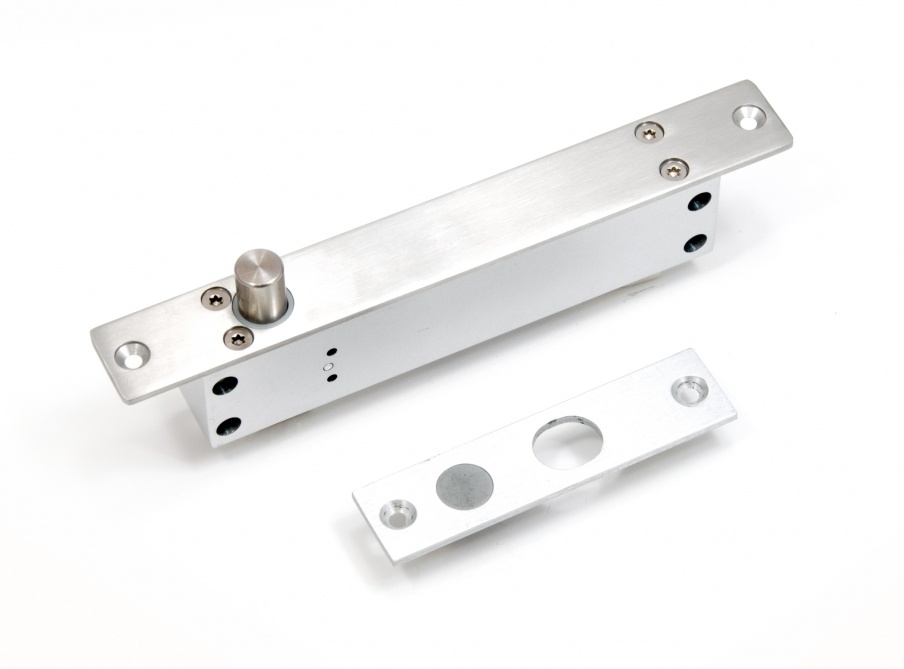

Electric bolts XSBL-series feature small dimensions simplifying mounting in narrow frames. Available in NC and NO mode. Recommended to mortise mounting in DIN-left and DIN-right doors, both vertically and horizontally (in the upper part of the frame with bolt released down). Equipped with varistor, door status monitoring, auto re-lock and protection against locking in improper position of doors, which secures the doors against potential damage.
Characteristic:
- fail-secure (NC normally closed) or fail-safe (NO normally open)
- mechanical strength – break-in resistance 10 000 N (1000 kg)
- mechanical strength – opening cycles 500.000
- for mortise mounting vertically or horizontally (in top frame with bolt released down)
- timer build-in (delay set on 0, 3, 6 or 9 seconds)
- varistor and monitoring built-in
- prevention against locking doors in incorrect position
|
Index |
XSBL12NMT |
XSBL12RMT |
|||
|---|---|---|---|---|---|
|
Work type |
NC (fail-secure) |
NO (fail-safe) |
|||
|
Voltage (V) |
12V DC |
12V DC |
|||
|
Power consumption – start up (mA) |
1000 |
1000 |
|||
|
Power consumption - working (mA) |
140 |
140 |
|||
|
Dimmensions of housing |
192 x 25 x 37 |
192 x 25 x 37 |
|||
|
Dimmensions of |
100 x 25 x 3 |
100 x 25 x 3 |
|||
|
Diameter dead bolt (mm) |
15 x 12,6 (fi 12,6mm) |
15 x 12,6 (fi 12,6mm) |
|||
|
Weight (kg) |
0,9 kg |
0,9 kg |
|||
|
Locking monitoring |
yes |
yes |
|||
|
LED-sygnalization |
yes |
yes |
|||
|
Timer (delay set on 0, 3, 6 or 9 s) |
yes |
yes |
|||
|
Mounting |
mortise |
mortise |
|||
| Index | Voltage | Current | Work type | Functions | Housing | Mounting | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12V | 12 - 24V | AC | DC | NC | NO | Locking monitoring | Timer | Auto-lock | LED sygnalization | Varistor | |||
| XSBL12RMT | ● | ● | ● | ● | ● | ● | ● | narrow | mortise | ||||
| XSBL12NMT | ● | ● | ● | ● | ● | ● | ● | narrow | mortise | ||||
