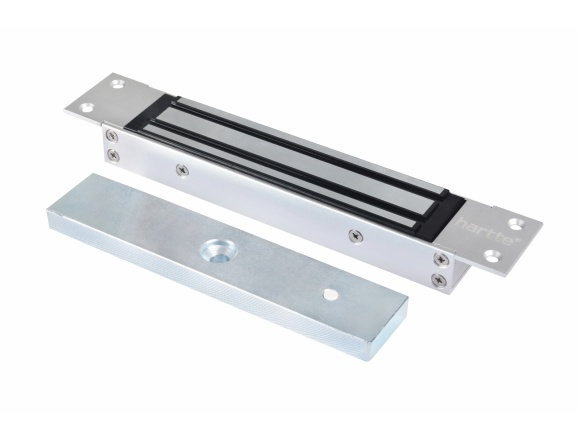

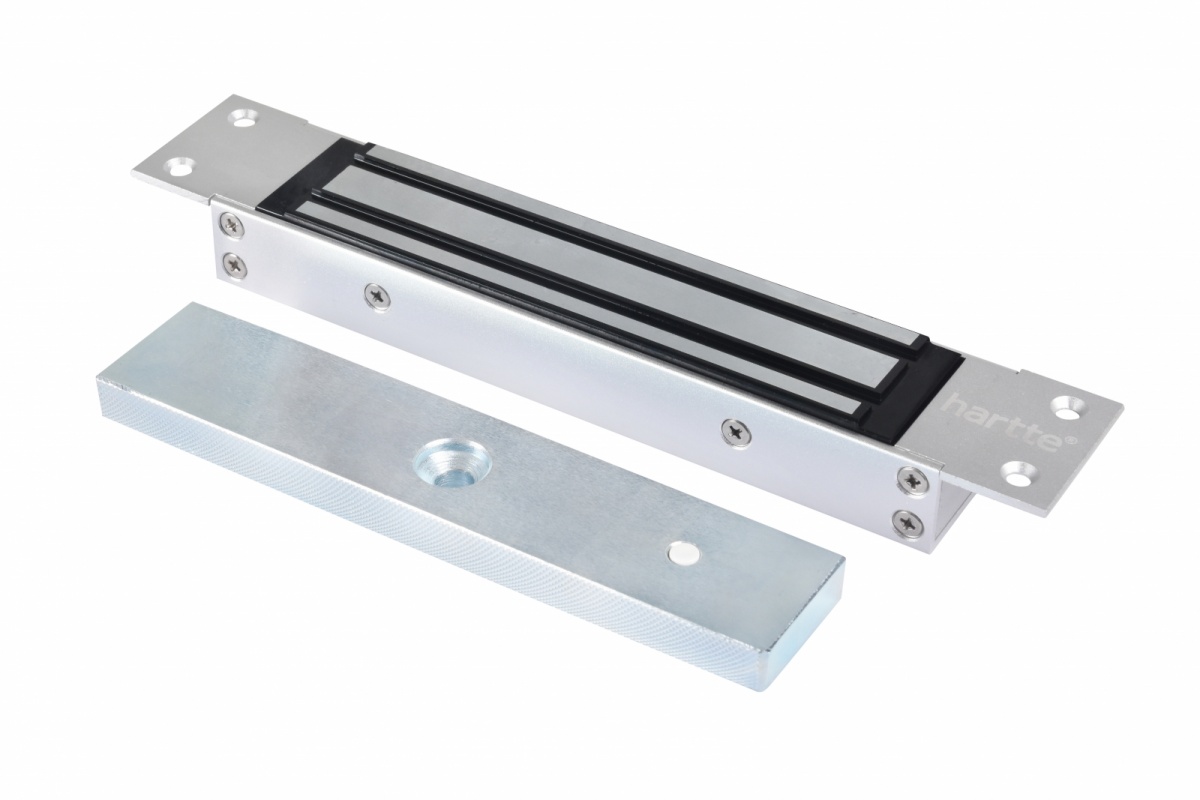

Hartte MG-series for mortise mounting
Download product card
Electromagnets MG-series are the most universal maglocks for standard applications. MG-series feature no residual magnetism, which means that when power is switched off, the electromagnet is opened without delay and enables immediate opening of the doors. MG-series is the most popular due to its small dimensions and weight as well as resistance to corrosion. Recommended to internal access control systems, alarm systems and time & attendance systems.
Characteristic:
- fail safe (NO)
- holding force 2800 N (280kg)
- no residual magnetism
- for surface (S) or mortise (M) mounting
- MOV surge protection built-in
- resistant to corrosion
|
Index |
MG280MR |
|
|---|---|---|
|
Holding force(N) |
2800 |
|
|
Voltage (V) |
12V DC |
|
|
Power consumption (mA) |
450 |
|
|
Dimmensions (mm) |
250x43x26,5 |
|
|
Weight (kg) |
2,0 |
|
|
Locking monitoring |
yes |
|
|
Door monitoring |
no |
|
|
Mounting |
mortise |
|
| Index | Voltage | Current | Work type | Holding force | Functions | Mounting | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 12V | DC | NO | 280kg | Locking monitoring | Door status monitoring | Varistor | Waterproof | Surface | Mortise | |
| MG280MR | ● | ● | ● | ● | ● | ● | ● | |||
| Index | Description |
|---|---|
| MG180L | Used for MG180SR |
| MG180ZL | Used for MG180SR |
| MG180U | Used for MG180SR (for glass doors) |
| MG280L | Used for MG280S and MG280SR |
| MG280ZL | Used for MG280S and MG280SR |
| MG280U | Used for MG280S and MG280SR (for glass doors) |
| MG280I | Used for MG280S and MG280SR |
| MG350L | Used for MG350SR |
| MG350ZL | Used for MG350SR |
| MG500L | Used for MG500SR |
| MG500ZL | Used for MG500SR |
