Hartte SHD-series

Hartte SHD-series
Download product card

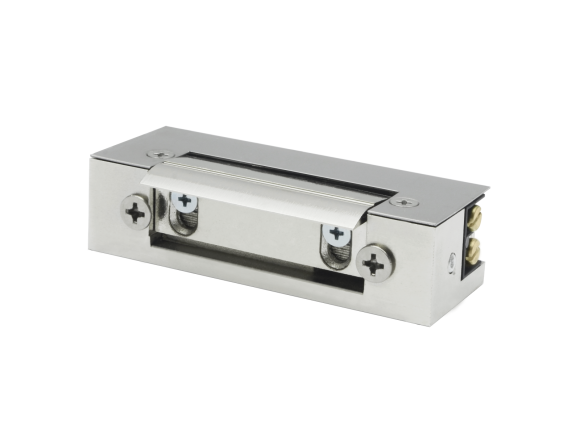

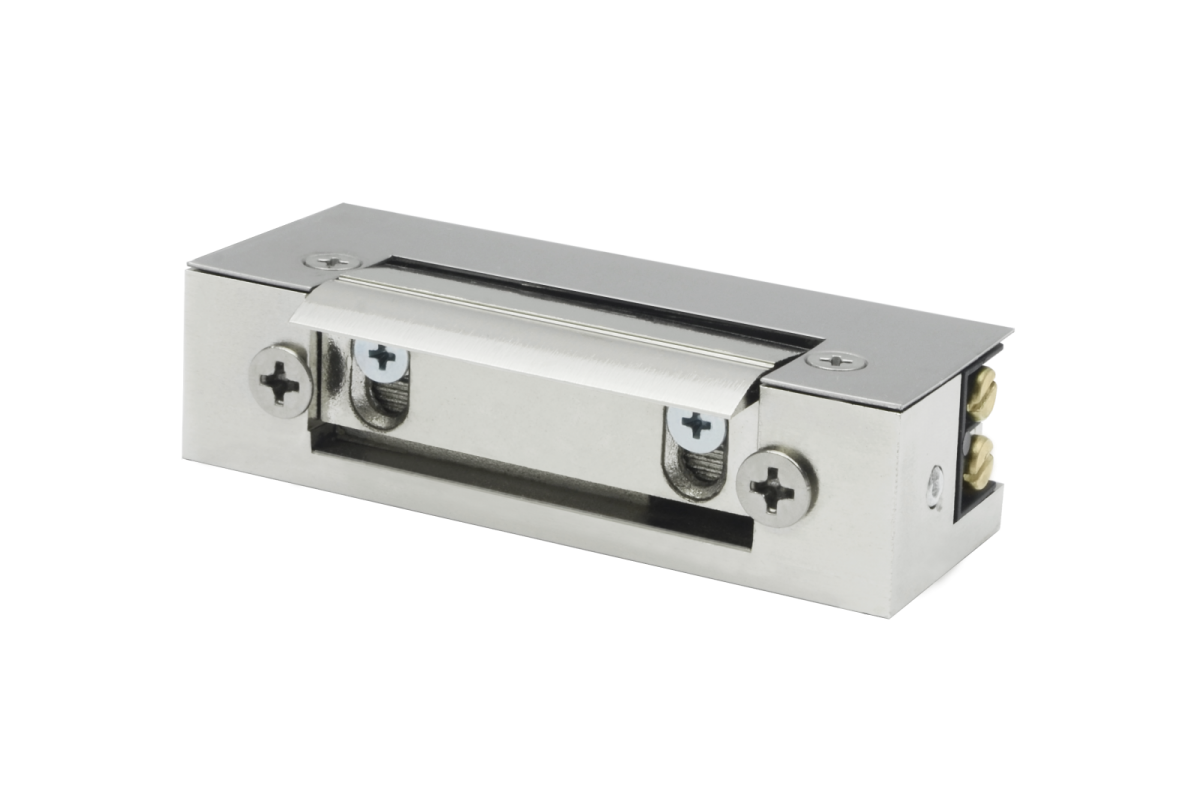

Versatile fire-resistant electric strikes SHD-series have CE certificate enabling application in all types of doors with classification EI60 according to Resolution CPR 305/2011 and the EU harmonized standard for electric strikes 14846.

Adjustable latch in range of 4 mm and symmetric housing simplify punching process in fire-doors’ production and accelerate mounting in both DIN-left and DIN-right doors.

Characteristic:

  • fire-rate EI60
  • fail-secure (NC normally closed) or fail-safe (NO normally open)
  • symmetric housing

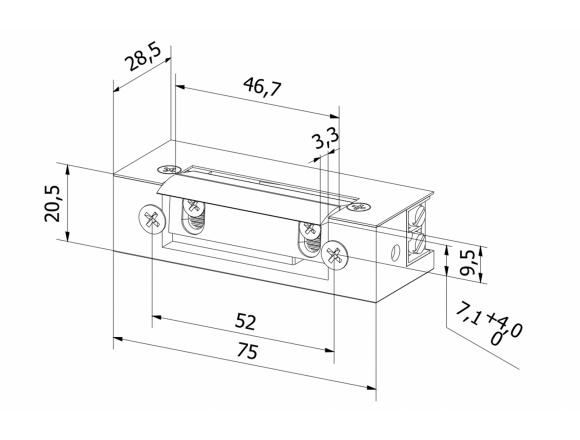

  • size: width 20,5mm, height 75mm, depth 28,5mm, size of version with door status monitoring: width 20,5mm x height 81,8mm x depth 28,5mm
  • mechanical strength – break-in resistance class 2
  • mechanical strength – opening cycles 200.000
  • DIN-left and DIN-right doors
  • latch adjustable up to 4mm

Models of HARTTE SHD-series:

  • normally closed
  • normally open (mounting on additional lock)
  • normally closed low consumption

Above models available also with door status monitoring (M) and/or varistor (V).



12-24V AC/DC

12AC/DC

12DC

12DC NO

24AC/DC

24DC

24DC NO

Index

 SHD00U

SHD12U

SHD12N

SHD12R

SHD24U

SHD24N

SHD24R

Voltage tolerance (V)

 DC 10-26

10-14

10-14

10-14

AC 21-26
DC 20-26

20-26

20-26

Resistance (Ohm)

 38

21

38

63

130

150

250

Power consumption AC (mA)



400

-

-

130

-

-

Power consumption DC (mA)

12V 320

24V 635

570

320

190

180

160

100

Continuously powered (100%ED)

 no

no

no

yes

no

no

yes
Index Type Voltage Current Work type Functions Housing Latch
    12V 24V AC DC NC NO Mechanical unlocking Hold-open Monitoring Varistor Strenghten spring Latch bolt guide
SHD00U low-consumption ● ● ● ● ●               symmetric steel, adjustable
SHD00UV low-consumption ● ● ● ● ●         ●     symmetric steel, adjustable
SHD00UM low-consumption ● ● ● ● ●       ●       symmetric steel, adjustable
SHD00UMV low-consumption ● ● ● ● ●       ● ●     symmetric steel, adjustable
SHD12U standard ●   ● ● ●               symmetric steel, adjustable
SHD12UV standard ●   ● ● ●         ●     symmetric steel, adjustable
SHD12N low-consumption ●     ● ●               symmetric steel, adjustable
SHD12NV low-consumption ●     ● ●         ●     symmetric steel, adjustable
SHD12R normally open ●     ●   ●             symmetric steel, adjustable
SHD12RV normally open ●     ●   ●       ●     symmetric steel, adjustable
SHD24U standard   ● ● ● ●               symmetric steel, adjustable
SHD24UV standard   ● ● ● ●         ●     symmetric steel, adjustable
SHD24N low-consumption   ●   ● ●               symmetric steel, adjustable
SHD24NV low-consumption   ●   ● ●         ●     symmetric steel, adjustable
SHD24R normally open   ●   ●   ●             symmetric steel, adjustable
SHD24RV normally open   ●   ●   ●       ●     symmetric steel, adjustable
SHD12UM standard ●   ● ● ●       ●       symmetric steel, adjustable
SHD12UMV standard ●   ● ● ●       ● ●     symmetric steel, adjustable
SHD12NM low-consumption ●     ● ●       ●       symmetric steel, adjustable
SHD12NMV low-consumption ●     ● ●       ● ●     symmetric steel, adjustable
SHD12RM normally open ●     ●   ●     ●       symmetric steel, adjustable
SHD12RMV normally open ●     ●   ●     ● ●     symmetric steel, adjustable
SHD24UM standard   ● ● ● ●       ●       symmetric steel, adjustable
SHD24UMV standard   ● ● ● ●       ● ●     symmetric steel, adjustable
SHD24NM low-consumption   ●   ● ●       ●       symmetric steel, adjustable
SHD24NMV low-consumption   ●   ● ●       ● ●     symmetric steel, adjustable
SHD24RM normally open   ●   ●   ●     ●       symmetric steel, adjustable
SHD24RMV normally open   ●   ●   ●     ● ●     symmetric steel, adjustable
