Striking plates for electric strikes

Striking plates for electric strikes
Download product card

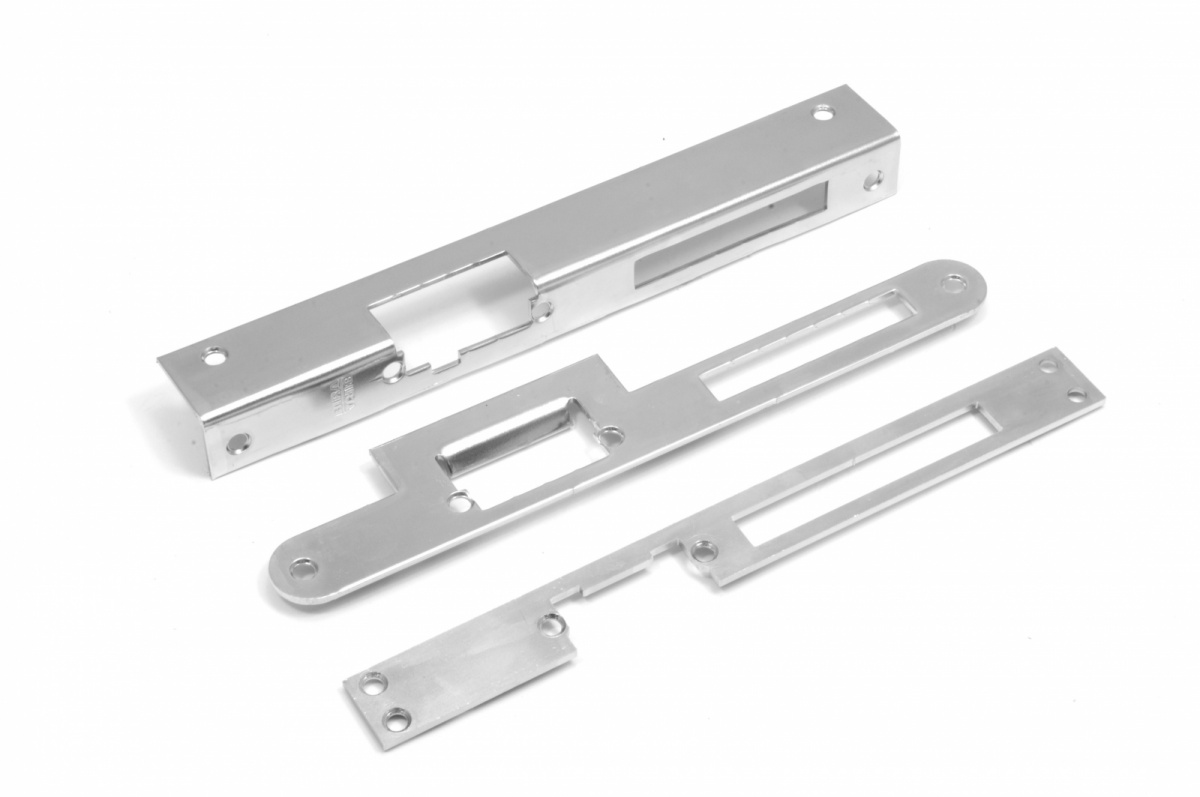

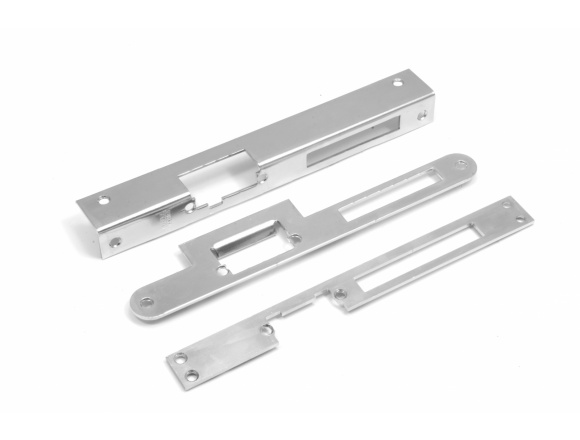

Striking plates and boxes dedicated to our products.

Characteristic:

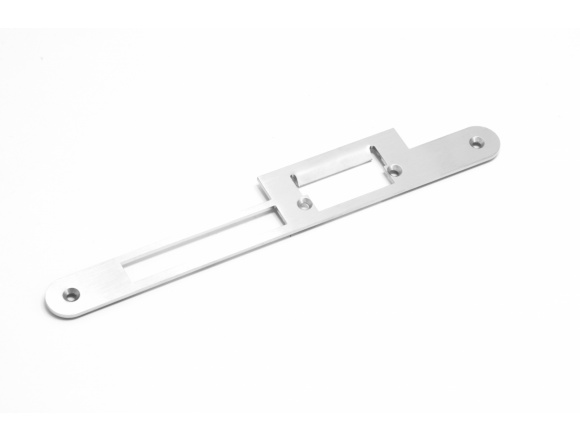

Flat plates

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized, painted
  • used for wooden profiles (rounded), aluminum, steel (square-cut) or PVC
  • standard length from 110mm to 250mm
  • produced also on order

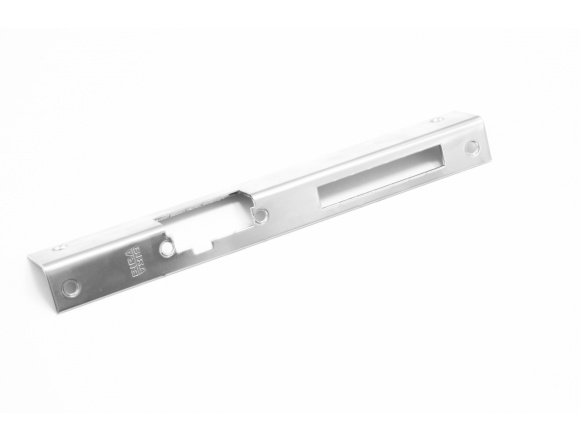

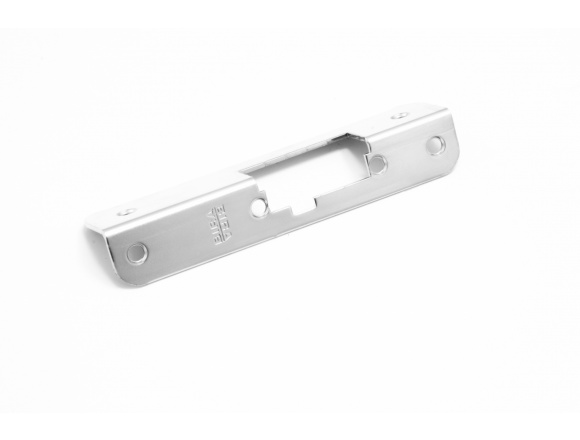

Angle plates

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized, painted
  • used for wooden profiles (rounded), aluminum, steel (square-cut) or PVC
  • standard length from 150mm to 250mm
  • produced also on order

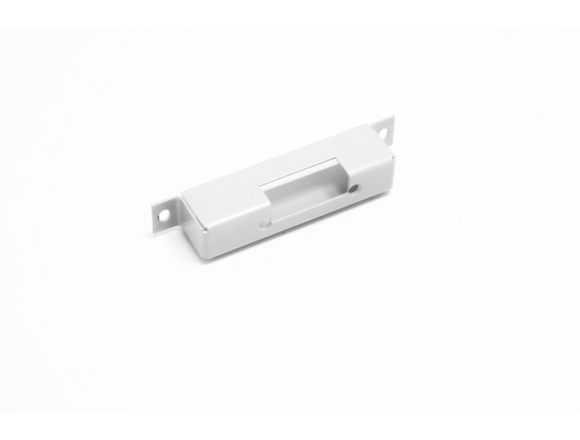

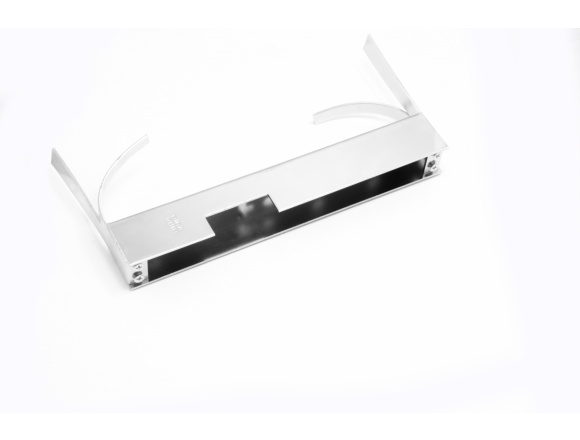

Special plates (plates and boxes)

  • made out of different materials: stainless steel, standard steel, anodized aluminum
  • polished, plated, galvanized, painted
  • wide offer of special plates with latch bolt guide securing profile
  • for doors, lockers and furniture
  • produced also on order
Index Available striking plates Material Characteristic Dinmension   Dedicated for products

flat

open
angle
flat closed
 "U"

shape
galvanized
stainless steel
square-cut
rounded
left
right
2 holes
4 holes
mm
dedicated striking plates for the following products
OK-P1 ●       ●   ●   ●

●

 ●   85 x 24 x 3  ES1, XS, XSHD (without models incl. monitoring)
OK-P2 ●       ●   ●   ● ● ●   130 x 25 x 3  ES1, S, XS, SHD, XSHD
OK-P3 ●         ● ●   ● ● ●   130 x 25 x 3  ES1, S, XS, SHD, XSHD
OK-P4 ●       ●   ●   ● ●   ● 250 x 25 x 3  ES1, S, XS, SHD, XSHD
OK-P5 ●       ●   ●   ● ● ●   250 x 25 x 3  ES1, S, XS, SHD, XSHD
OK-P6 ●       ●   ●   ● ● ●   250 x 25 x 3  EL1, ELP, ES1, S, XS, SHD, XSHD
OK-P7 ●         ● ●   ● ●   ● 250 x 25 x 3  ES1, S, XS, SHD, XSHD
OK-K1   ●     ●   ●   ● ●   ● 150 x 25/32 x 2  ES1, S, XS, SHD, XSHD
OK-K2   ●     ●   ●   ●     ● 250 x 25/32 x 2  ES1, S, XS, SHD, XSHD
OK-K3   ●     ●   ●   ●     ● 250 x 25/32 x 2  EL1, ELP, ES1, S, XS, SHD, XSHD
OK-K4   ●     ●   ●     ●   ● 250 x 25/32 x 2  ES1, S, XS, SHD, XSHD
OK-K5   ●     ●   ●     ●   ● 250 x 25/32 x 2  EL1, ELP, ES1, S, XS, SHD, XSHD
OK-K6   ●     ●     ● ●     ● 250 x 25/32 x 2  ES1, S, XS, SHD, XSHD
OK-K7   ●     ●     ● ●     ● 250 x 25/32 x 2  EL1, ELP, ES1, S, XS, SHD, XSHD
OK-K8   ●     ●     ●   ●   ● 250 x 25/32 x 2  ES1, S, XS, SHD, XSHD
OK-K9   ●     ●     ●   ●   ● 250 x 25/32 x 2  EL1, ELP, ES1, S, XS, SHD, XSHD
OK-C1     ●     ● ●   ● ● ●   120 x 24 x 3  XS-C, XSHD-C, SHD-C
OK-C2     ●     ●   ● ● ● ●   120 x 24 x 3  XS-C, XSHD-C, SHD-C
OK-C3     ●     ● ●   ● ● ●   200 x 24 x 3  XS-C, XSHD-C, SHD-C
OK-C4     ●     ●   ● ● ● ●   250 x 24 x 3  XS-C, XSHD-C, SHD-C
OK-U1       ●   ● ●   ●   ●   200 x 24 x 1,5  XS, XS-CF, XSHD
OK-U2       ●   ● ●     ● ●   200 x 24 x 1,5  XS, XS-C, XSHD
:
